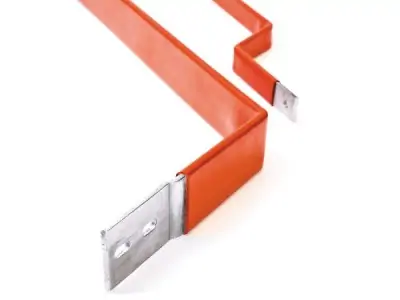

TTSh-35 heat shrink tubing for busbar insulation rated for up to 35 kV
Type: TTSh-35 (TU 2291-049-97284872-2012)
- Designed for insulation of copper and aluminum busbars in electrical substations and switchgear cabinets. Can be installed outdoors
- Shrinkage ratio: 2.5:1
- Operating voltage: 35 kV
- Material: polyolefin, halogen-free
- Equivalents: BBIT (Raychem); BBI (3M)
- Resistant to tracking and UV radiation
- High dielectric strength
- Color: Brick red
- TSh tubes allow to reduce the distance between the phase buses and significantly reduce the dimensions of the device design
- The tubes protect electrical busbars against chemical corrosion
- They protect the equipment from short circuits resulting from animals and birds coming into contact with the switchboard
- Installation tools: TT-1800 heat gun or PG burners
If two tubes of different sizes can be installed on the desired busbar, choose the larger one
|
Elongation at fracture |
not less than 400 % |
|
Shrinkage temperature |
120 °C |
|
Operating temperature |
-55 °C to +125 °C |
|
Tensile strength |
not less than 15 MPa |
|
Dielectric strength |
not less than 25 kV/mm |
|
Operating voltage |
up to 35kV |
|
Volumetric resistivity |
1014 ohm*cm |
Switchboard with non-insulated busbars Switchboard with insulated busbars
|
Rated voltage (kV) |
Busbar with air gaps |
TTSh-10 |
TTSh-35 |
|||
|
Phase-Phase A (mm) |
Phase-Ground B (mm) |
Phase-Phase A (mm) |
Phase-Ground B (mm) |
Phase-Phase A (mm) |
Phase-Ground B (mm) |
|
|
Round busbars |
||||||
|
10 |
130 |
120 |
55 |
65 |
30 |
40 |
|
20 |
200 |
180 |
95 |
120 |
60 |
90 |
|
35 |
320 |
290 |
150 |
205 |
100 |
160 |
|
Rectangular busbars |
||||||
|
10 |
130 |
120 |
65 |
75 |
35 |
45 |
|
20 |
200 |
180 |
115 |
150 |
70 |
100 |
|
35 |
320 |
290 |
200 |
285 |
140 |
190 |
The dimensions shown in the table are given for reference only and cannot be used in the design and manufacture of electrical equipment without appropriate testing.
|
commodity items, color |
delivery package |
adhesive layer |
Width of mounted busbar (mm) |
Dimensions (mm) |
min. quantity for release |
cost unit |
||
|
D (not less than) |
d (not more than) |
T (after shrinkage) |
||||||
|
TTSh-35-25/10 |
reel: 10m |
w/o adhesive |
20 |
25 |
10 |
3.7 |
10 |
m |
|
TTSh-35-40/16 |
reel: 10m |
w/o adhesive |
30-40 |
40 |
16 |
3.7 |
10 |
m |
|
TTSh-35-65/25 |
reel: 10m |
w/o adhesive |
50-60 |
65 |
25 |
3.7 |
10 |
m |
|
TTSh-35-100/40 |
reel: 10m |
w/o adhesive |
80–120 |
100 |
40 |
3.7 |
10 |
m |
|
TTSh-35-150/60 |
reel: 10m |
w/o adhesive |
120-150 |
150 |
60 |
3.7 |
10 |
m |
