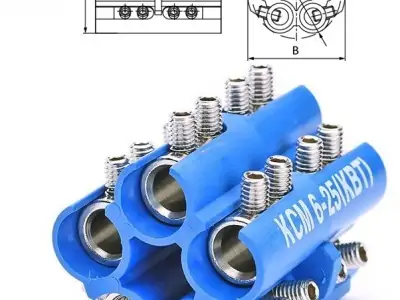

Type: KSM (TU 3449-068-97284872-2015)

• Designed for connecting multi-core cables and wires by screwing.
• They can be used within fillable or heat shrink cable joints together with cables with plastic and rubber insulation rated for up to 1 kV
• Package content:
  • polymer enclosure
  • 5 screw connectors
  • hex key
• The connector blocks may be used for installation of both copper and aluminum cables with solid or multi-wire cores
• Operating voltage: up to 1 kV
• Body material: PBT, does not support combustion
• Connector material: LS58-2 brass
• Connector plating: electrolytic tin plating
• Screw material: steel
• All screws have an internal hexagon profile
• The blocks are multi-size and can be used with a wide range of cores with different cross-sectional area
• No special installation tools required
