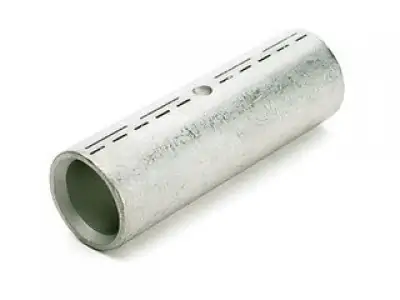

Tinned copper end sleeves manufactured as per DIN 46267
Type: GML(DIN) (DIN 46267)
- Designed for jointing of copper cables and wires by crimping
- Material: M1 grade refined copper
- Plating: electrolytic tin-bismuth plating
- Operating voltage: up to 10 kV
- The end sleeves have an open cylinder design and a pressed stopping notch in the center that helps determine the depth of insertion of cable cores
- The end sleeves have double-groove marking indicating the number and location of crimping points, which depend on the width of dies
- The inner and outer diameters of the DIN 46267 compliant end sleeves correspond to the dimensions of pipes from which the DIN 46235 compliant end sleeves are made
|
commodity items |
Cross-sectional area (mm²) |
Dimensions (mm) |
min. quantity for release |
cost unit |
|||
|
L |
d |
d₁ |
|||||
|
GML (DIN) -6 (KVT) |
6 |
— |
30 |
5.5 |
3.8 |
100 |
pc |
|
GML (DIN) -10 (KVT) |
10 |
— |
30 |
6 |
4.5 |
100 |
pc |
|
GML (DIN) -16 (KVT) |
16 |
— |
50 |
8.5 |
5.5 |
100 |
pc |
|
GML (DIN) -25 (KVT) |
25 |
— |
50 |
10 |
7 |
100 |
pc |
|
GML (DIN) -35 (KVT) |
35 |
— |
50 |
12.5 |
8.2 |
50 |
pc |
|
GML (DIN) -50 (KVT) |
50 |
— |
56 |
14.5 |
10 |
50 |
pc |
|
GML (DIN) -70 (KVT) |
70 |
— |
56 |
16.5 |
11.5 |
50 |
pc |
|
GML (DIN) -95 (KVT) |
95 |
— |
70 |
19 |
13.5 |
10 |
pc |
|
GML (DIN) -120 (KVT) |
120 |
— |
70 |
21 |
15.5 |
10 |
pc |
|
GML(DIN) -150 (KVT) Min. quantity for release: 10 pcs |
150 |
— |
80 |
23.5 |
17 |
10 |
pc |
|
GML (DIN) -185 (KVT) |
185 |
— |
85 |
25.5 |
19 |
10 |
pc |
|
GML (DIN) -240 (KVT) |
240 |
— |
90 |
29 |
21.5 |
5 |
pc |
|
GML (DIN) -300 (KVT) |
300 |
— |
100 |
32 |
24.5 |
5 |
pc |
|
GML (DIN) -400 (KVT) |
400 |
— |
150 |
38.5 |
27.5 |
5 |
pc |
|
GML (DIN) -500 (KVT) |
500 |
— |
160 |
42 |
31 |
1 |
pc |
|
GML (DIN) -625 (KVT) |
625 |
— |
160 |
44 |
34.5 |
1 |
pc |
